Pac-Dent iVac LED Piezo Ultrasonic Scaler with 9 Tips

Product Description

Pac-Dent presents the market's most innovative piezoelectric ultrasonic scaler:

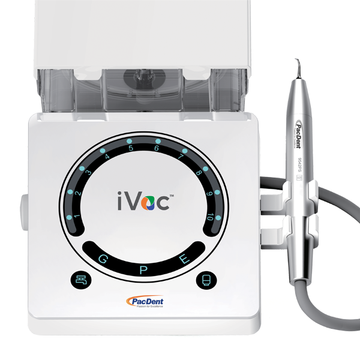

The iVac® LED Piezoelectric Ultrasonic Unit. With a modern and innovative design, the iVac® piezo was designed to meet the demands of dentists with the best conceivable ultrasonic source performance. With a lightweight handpiece, LED light source, and adaptive vibration system, which automatically calculates the best frequency for each type of insert and application, the iVac® piezo features an easy-to-operate touchscreen panel, in addition to being easy to clean. The iVac piezo oers the functions of scaler and periodontics, additionally providing a series of inserts for use in endodontics, such as exclusive tips for locating canal entries and state-of-art irrigation. Furthermore, iVac® exclusively features the iVac negative pressure irrigation and ultrasonic activation system. The iVac® is a complete option for irrigation and disinfection of the root canal, combining ultrasonic activation and negative pressure irrigation with a shallow risk of extrusion and constant renewal of the irrigating uid. This unique function can be achieved from the iVac® piezo ultrasonic unit, which has three accessory bottles with an improved dual valve connection, which guarantees a perfect ft without leaks. iVac piezo has a 30-second timer for constant irrigation control and a semi-automatic ush system to ensure the equipment's longevity even when corrosive irrigating liquids are used.

Less patient sensitiveness and discomfort with the vibration feedback control during scaling
Water line or reservoir/bootles irrigation sources
Range of frequency from 25 to 31 kHz
S-type (Satelec) extensive options of endodontic tips
Exclusive 3 accessories bottles for fast irrigation fluid replacement during endodontic treatment
Lightweight LED ergonomic handpiece
Exclusive 30 seconds continuous irrigation timer
Semi-automatic flush program to prevent build-ups and corrosion
Designed and tested for Pac-Dent's unique iVac endodontic irrigation system

Description:

iVac® LED Piezoelectric unit is an ultrasonic device operating on a range of 25 to 31KHz frequency. iVac® piezo is a portable unit that can be connected to the office water line or its reservoir for irrigation during the procedure. iVac piezo is a multifunctional device that can be used for dental hygiene; extensively evidence-based and proven to be effective for calculus and stain removal, alongside applications in endodontics, periodontics, cavity preparation, implantology, and oral surgery. iVac piezo utilizes a state-of-the-art piezoelectric transducer operating at an optimal frequency of 27 kHz to 31 kHz in a linear pattern via crystals activated by the ceramic handpiece. iVac piezo requires less water to control heat compared with magnetostrictive ultrasonic handpieces. This specific property produces fewer aerosols during scaling and is more comfortable for patients with breathing conditions. In addition, with an advanced processor-controlled energy dispersion, the iVac piezo electronics manage the necessary vibration for each procedure, allowing more comfort and less aerosol during vibration.

Comparison of iVac® piezo (Piezoelectric) versus Cavitron (Magnetostrictive)

iVac piezo exclusive features:

 Ultrasensitive intuitive touchscreen control panel interface for ease of use with       customizable power settings for improved efficiency

  Waterline and reservoir irrigation modes

 Regular tank and accessories bottles to quick shift irrigants during the procedure

 Pre-set semi-automatic clean-purge program

 Pre-set programs for scaling, perio, endo and endo activation/irrigation

 30 seconds alarm to time endo activation/irrigation

 LED tip illumination

 Compatible with S-type tips

 Unique proprietary inserts for finding hidden canal entrances and irrigation/activation

Advantages of iVac piezo versus other piezoelectric units:

 LED tip illumination
 Regular tank and accessories bottles to quick shift irrigants during the procedure
 Pre-set clean-purge program
 30 seconds alarm to time activation/irrigation
 Irrigation mode with pre-set vibration and amplitude suitable for endodontics  irrigants activation
 iVac® Apical Negative Pressure Irrigation and Activation System ready to use
 Exclusive Trumpet and Scout tips to find hidden canal entrances (i.e., MB2 upper molar)

 Contents Of Box:

 Main unit, Handpiece

 Torque wrench

 Flat Wrench, Foot pedal

 AC cord, Reservoir

 LED lamp (extra)

 3 Accessory Bottles

 IFU

 Tech Guide

Tips Included:

 ED70 (irrigation/activation connector for PolySonic tips)

 ED73 (Peek polymer tip .20 18 mm)

 ED74 (Peek polymer tip .20 21 mm)

 ED28 (Scout – canal orifice micro-opening)

 ED27 (Trumpet – canal orifice localization)

ED14 (Long spreader - broken file retrieval)

 ED15 (spreader)

 ED12D (ball diamond coated)

 ED17 (gutta percha cutter)

Technical specifications

iVac® LED Piezo Ultrasonic Unit:

•  Main unit input: 110V. 50Hz/60Hz 280 mA.

•  Output primary tip vibration excursion: ≤90μm.

•  Output half-excursion force: <2N.

•  Output tip vibration frequency: 28kHz±3kHz.

•  Output power: 3W to 20W.

• Main unit fuse: T0.5AL 250V.

• Water pressure: 0.01MPa to 0.5MPa.

• Weight of main unit: 3.97 pounds (1.8 Kg).

• Operating mode: Continuous operation.

• Type of protection against electric shock: class II equipment.
